Sol-Ark 15K Hybrid Inverter/Charger

Type

Lead Acid or Li ion

Nominal DC Input

48V

Capacity

50 - 9900Ah

Voltage Range

43.0 - 63.0V

Max Allowed PV Power

17000W

Continuous AC Power to Grid

15000W 62.5A L (240V)

Frequency

60/50Hz

Dimensions

31.8 x 18.3 x 10.9 in

Weight

135 lbs

Standard Warranty

10 years

Lithium Battery Bank

KONG ELITE MAX 19KwH

SKU

FKONG-48190-G1

Voltage

48V

Chemistry

LiFePO4

Charging Voltage Range

55.6V - 58.0V

Max Charge Voltage

58.8V

kWh Capacity

19kWh

Ah Capacity

372Ah

Weight

600lbs

Dimensions

46.5 x 15 x 25.5 in

Warranty

10 years

400 Watt Solar Panel Specs

Output

400 Watts

Module Efficiency

20.29%

Open Circuit Voltage

40.8

Short Circuit Current

11.51

Rated Voltage V

34.06

Rated Voltage A

10.87

Cell Type

Monocrystalline

Dimensions

1756 x 1039 x 35mm

Weight

45.19lbs lbs

Warranty

25 years

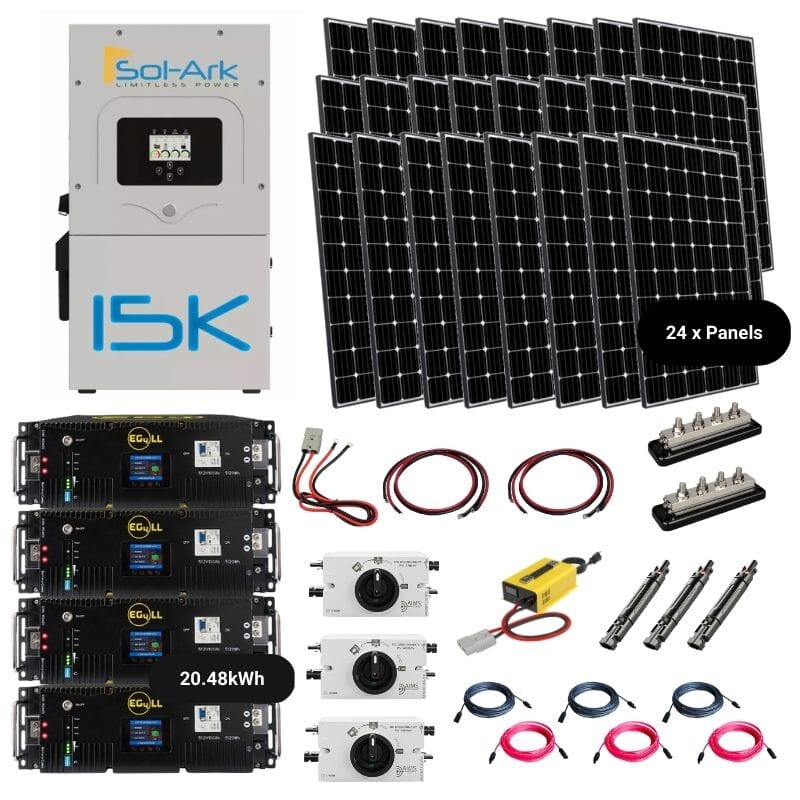

HDK - PLUS Solar Kit Specs

Max Continuous Output

15000W

Max Solar Input

17000W

Total Wattage of Panels

9,600W

Total KWH of Batteries

19kWh

Wattage Per Panel

400W

# of Panels

24

Voltage

48V

Chemistry

Lithium

# of Batteries

1

Battery Weight

600 lbs
